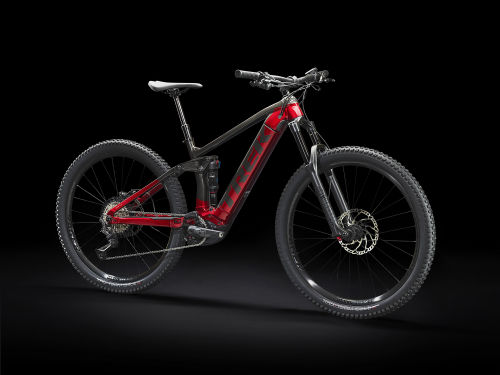

Trek Rail 7
Serie: Rail - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | Shimano SLX M7100, 12-speed |
|---|---|
| Derailleurs | Rear: Shimano XT M8100, long cage, 51T max cog |
| Shifters | Shimano SLX M7100, 12-speed |
| Cassette | Shimano SLX M7100, 10-51, 12-speed |
Frameset
| Fork | RockShox Yari RC, DebonAir spring, Motion Control RC damper, e-MTB optimised, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel |
|---|---|

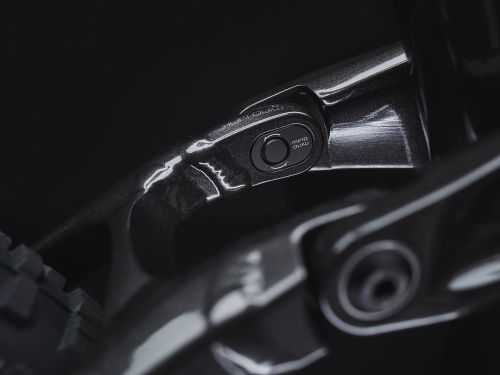

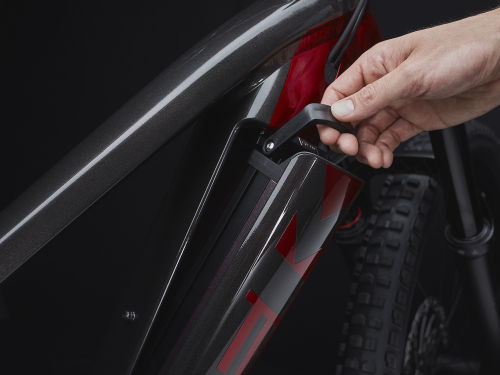

| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |

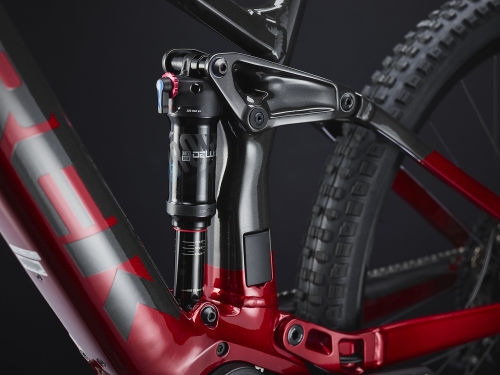

| Shoc | RockShox Deluxe Select+, 230x57.5 mm |
| Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle - Rear: Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
|---|---|

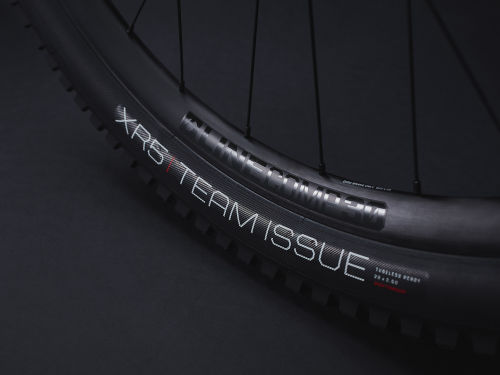

| Tyres | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.60" |
Components
| Handlebar | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width |
|---|---|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: STranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length - Size: M, L, XLTranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |

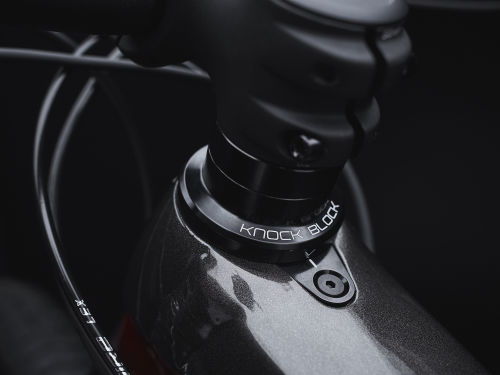

| Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
| Pedals | VP-536 nylon platform |
E-System

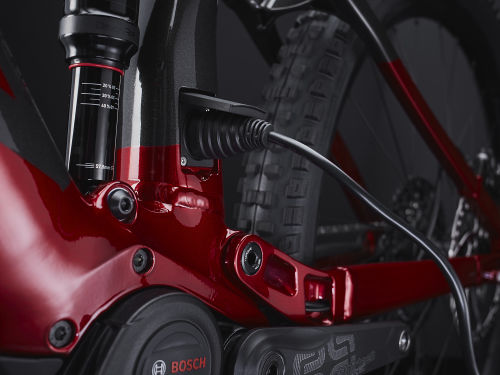

| Battery | Bosch PowerTube 625 |
|---|---|
| Charger | Bosch standard 4A (220-240 V) charger |
