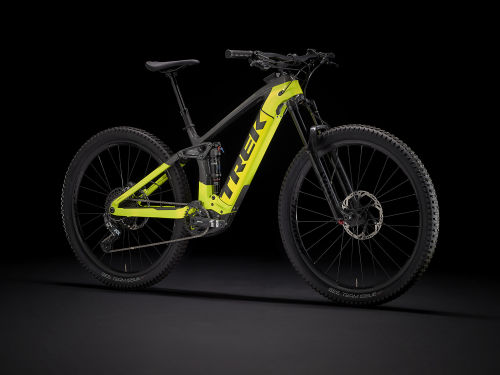

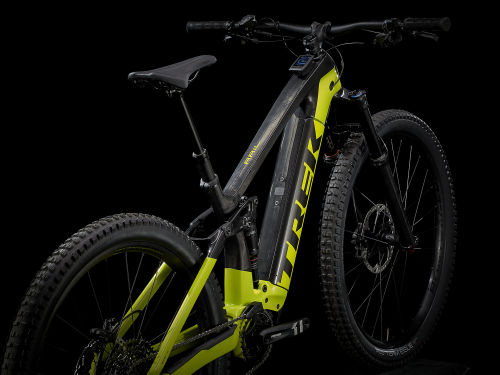

Trek Rail 9.7
Serie: Rail - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | SRAM NX Eagle, 12-speed |
|---|---|
| Crank | SRAM X1 1000, 36T, 165 mm length |

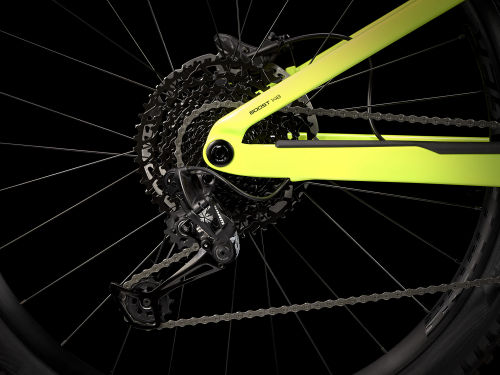

| Derailleurs | Rear: SRAM NX Eagle |
| Shifters | SRAM NX Eagle single-click, 12-speed |
| Cassette | SRAM PG-1230 Eagle, 11-50, 12-speed |
Frameset
| Fork | RockShox Yari RC, DebonAir spring, Motion Control RC damper, e-MTB optimised, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel |
|---|---|

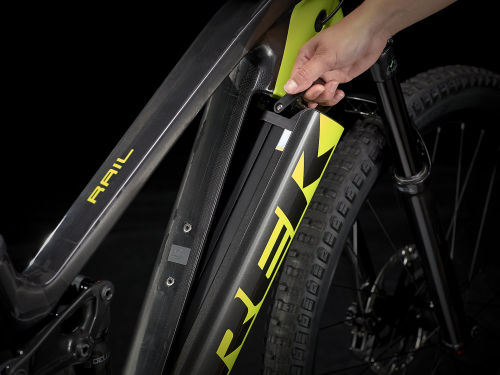

| Frame | OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |

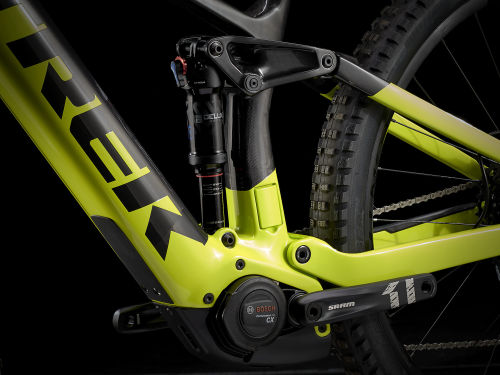

| Shoc | RockShox Deluxe Select+, 230x57.5 mm |
| Size: S, M, L, XLBontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length - Size: S, M, L, XLBontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Tyres | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.60" |
Brakes

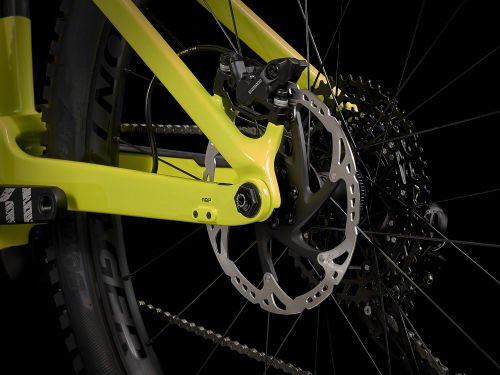

| Brakes | Shimano M6120 4-piston hydraulic disc |
|---|
Components
| Handlebar | Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 780 mm width |
|---|---|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: SBontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length - Size: M, L, XLBontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length |
| Stem | Size: S, M, L, XLBontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length - Size: S, M, L, XLBontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length |
| Pedals | VP-536 nylon platform |
E-System
| Battery | Bosch PowerTube 625 |
|---|---|
| Charger | Bosch standard 4A (220-240 V) charger |

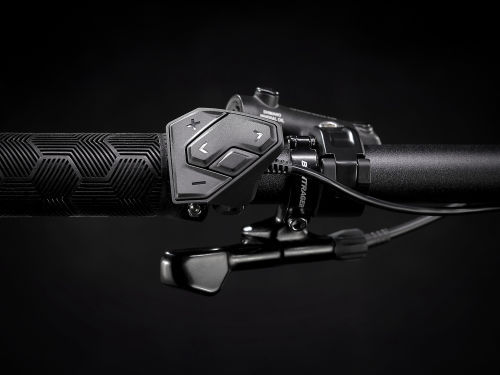

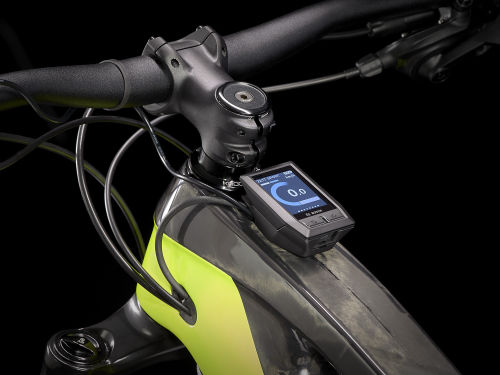

| Controller | Bosch Kiox with Anti-theft solution |

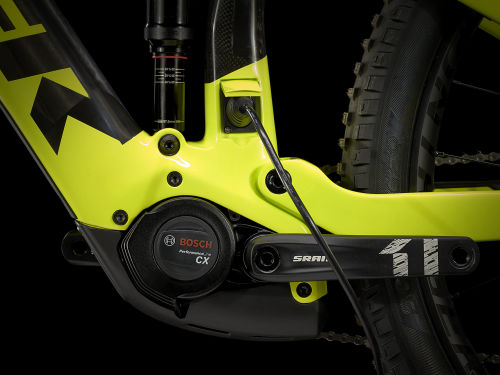

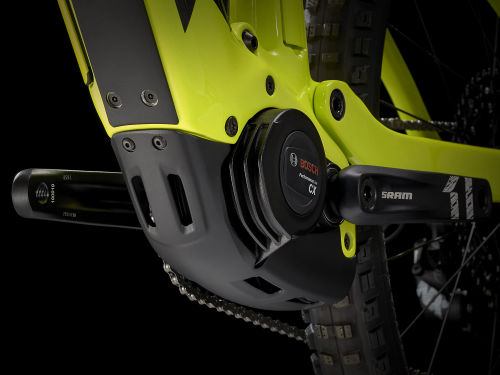

| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand |
