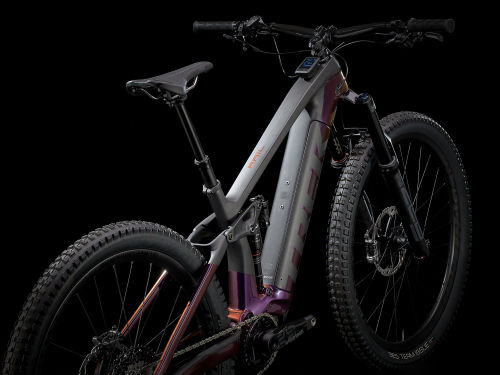

Trek Rail 9.9 XTR
Serie: Rail - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | Shimano XTR M9100, 12-speed |
|---|---|

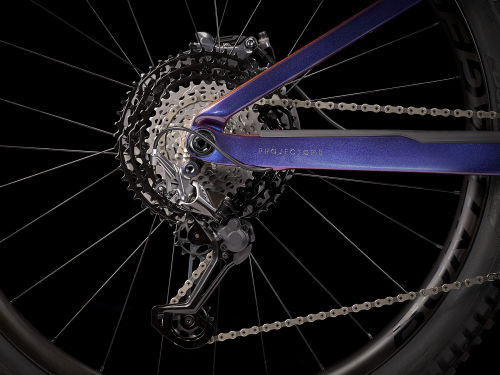

| Derailleurs | Rear: Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog |
| Shifters | Shimano XTR M9100, 12-speed |
| Cassette | Shimano XTR M9100, 10-51, 12-speed |
Frameset
| Fork | RockShox ZEB Ultimate, DebonAir spring, Charger 2.1 RC2 damper, e-MTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 170 mm travel |
|---|---|

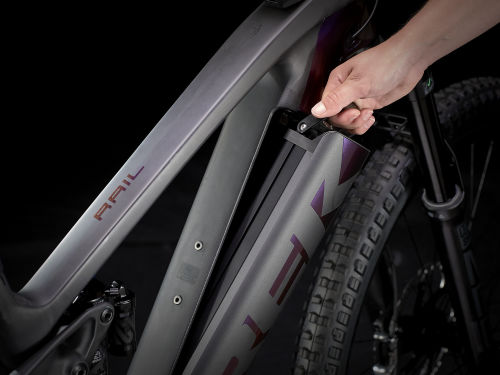

| Frame | OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |

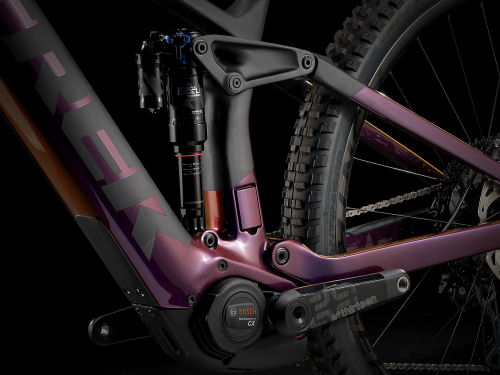

| Shoc | NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5 mm |
| Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length |
Wheels

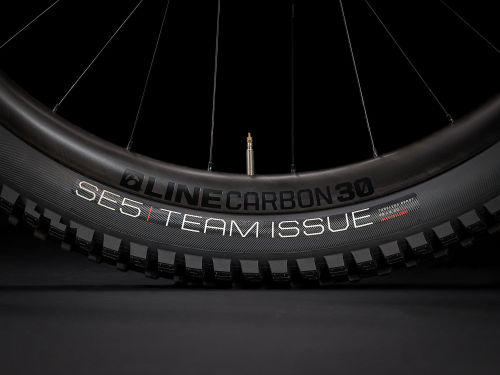

| Tyres | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60" |
|---|
Brakes

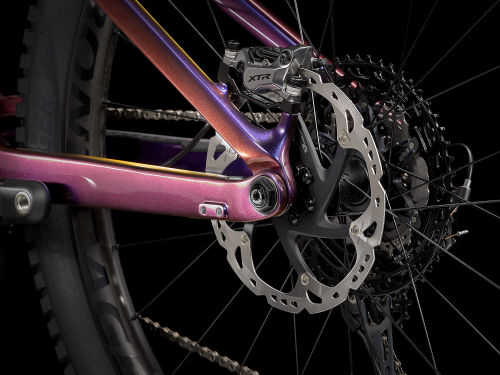

| Brakes | Shimano XTR M9120 4-piston hydraulic disc |
|---|
Components
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
|---|---|
| Grips | Bontrager XR Trail Elite, alloy lock-on |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |

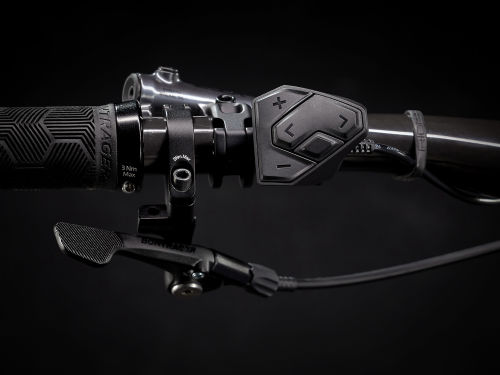

| Seatpost | Size: SBontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length - Size: MBontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length - Size: L, XLBontrager Line Elite Dropper, 170mm travel, internal routing, 31.6 mm, 480mm length |
| Stem | Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length |
| Pedals | VP-536 nylon platform |
E-System
| Battery | Bosch PowerTube 625 |
|---|---|
| Charger | Bosch standard 4A (220-240 V) charger |

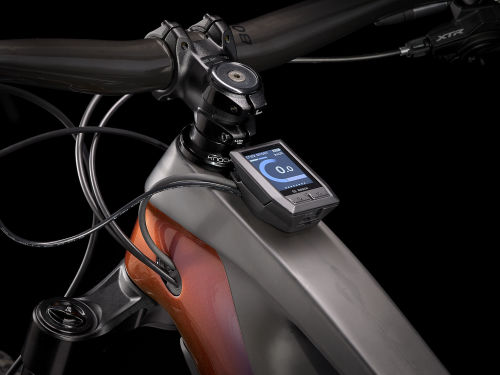

| Controller | Bosch Kiox with Anti-theft solution |

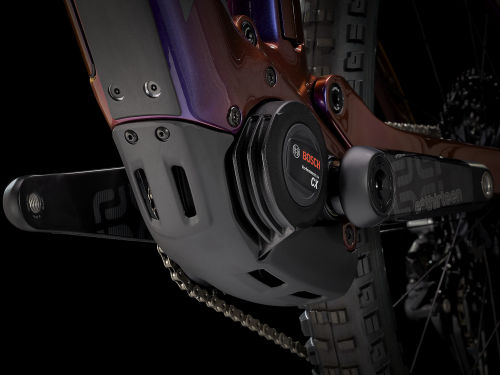

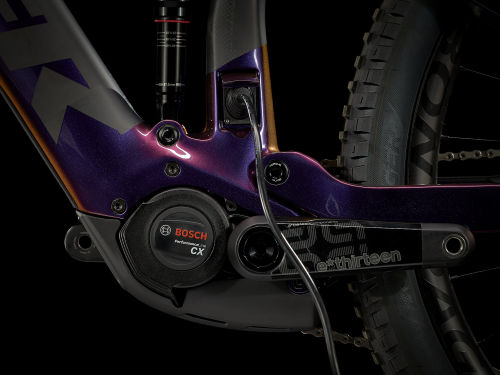

| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand |
