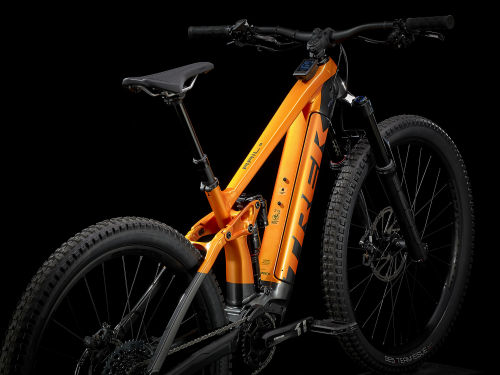

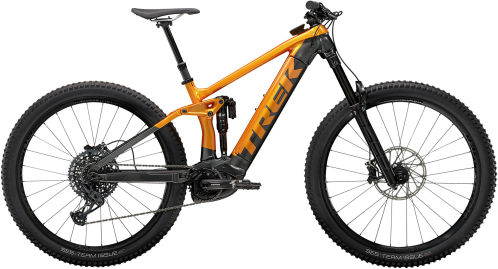

Trek Rail 9
Serie: Rail - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | SRAM GX Eagle, 12-speed |
|---|---|
| Crank | SRAM X1 1000, 36T, 165 mm length |
| Derailleurs | Rear: SRAM GX Eagle |
| Shifters | Shimano GX Eagle, 12-speed |

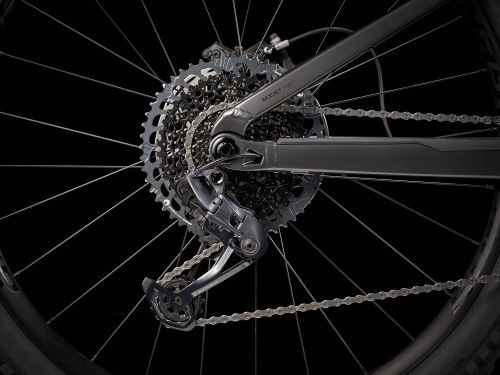

| Cassette | SRAM Eagle XG-1275, 10-52, 12-speed |
Frameset
| Fork | RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel |
|---|---|
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |

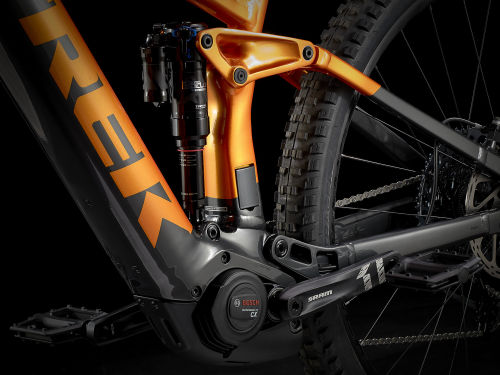

| Shoc | NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5 mm |
| Bontrager Line, 35 mm, Knock Block, 0-degree, 50 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|

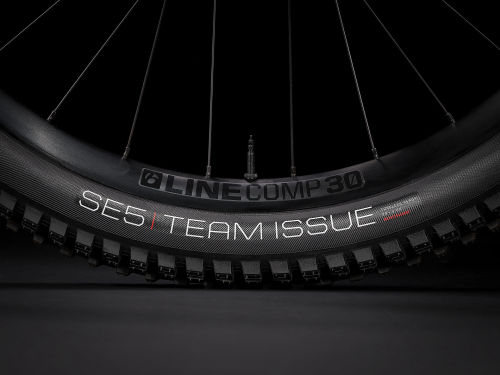

| Tyres | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60" |
Brakes

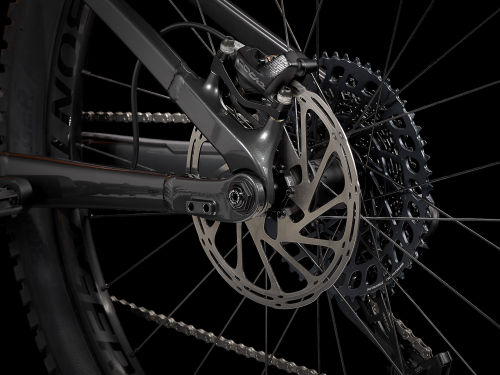

| Brakes | Size: S, M, L, XLSRAM Code R hydraulic disc - Size: S, M, L, XLSRAM Code R 4-piston hydraulic disc |
|---|
Components
| Handlebar | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
|---|---|
| Grips | Bontrager XR Trail Elite, alloy lock-on |
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
| Seatpost | Size: SBontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length - Size: MBontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length - Size: L, XLBontrager Line Elite Dropper, 170mm travel, internal routing, 31.6 mm, 480mm length |
| Stem | Bontrager Line, 35 mm, Knock Block, 0-degree, 50 mm length |
| Pedals | VP-536 nylon platform |
E-System

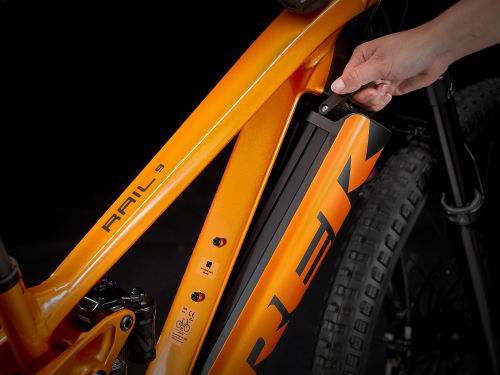

| Battery | Bosch PowerTube 625 |
|---|---|
| Charger | Bosch standard 4A (220-240 V) charger |

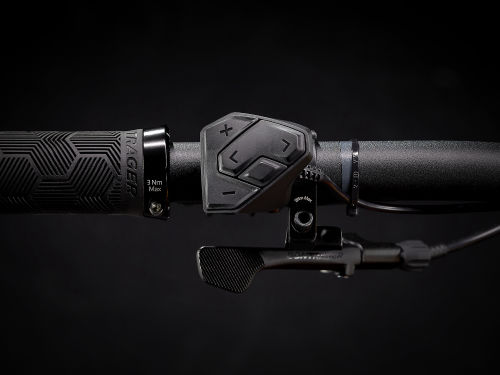

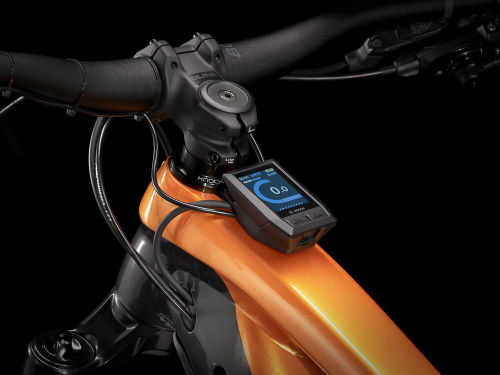

| Controller | Bosch Kiox with Anti-theft solution |

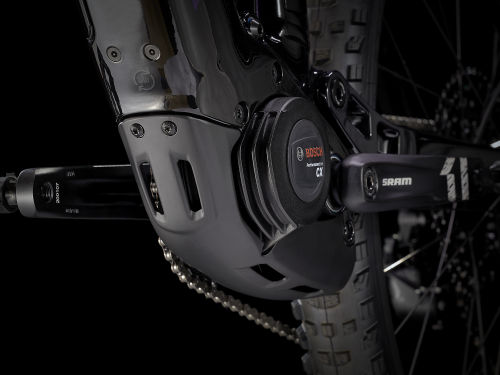

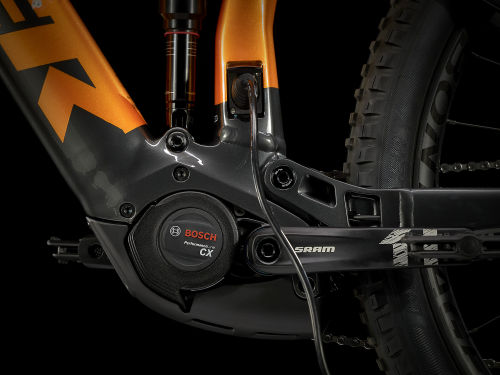

| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand |
