Specifications
Drivetrain
Chain | Shimano Deore M6100, 12-speed |
---|---|

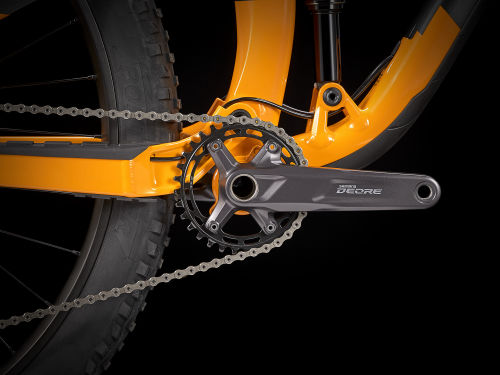

Crank | Size: XS , S Shimano MT511, 30T steel ring, Boost, 170 mm length - Size: M , ML , L , XL , XXL Shimano MT511, 30T steel ring, Boost, 175 mm length |

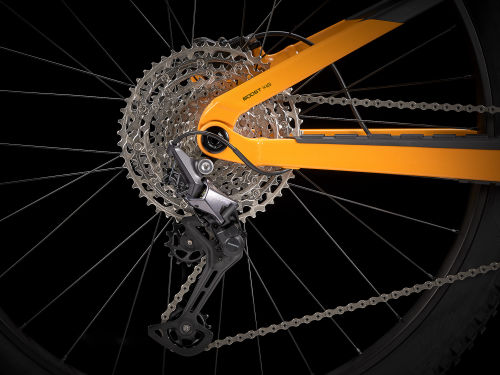

Derailleurs | Rear: Shimano Deore M6100, long cage |
Shifters | Shimano Deore M6100, 12-speed |
Cassette | Shimano Deore M6100, 10-51, 12-speed |
Frameset
Fork | Size: XS , S RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 140 mm travel - Size: S , M , ML , L , XL , XXL RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 140 mm travel |
---|---|

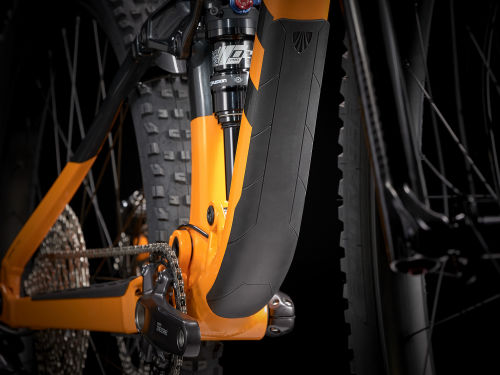

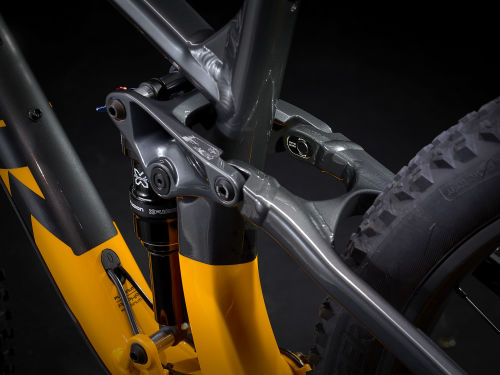

Frame | Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |
Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |

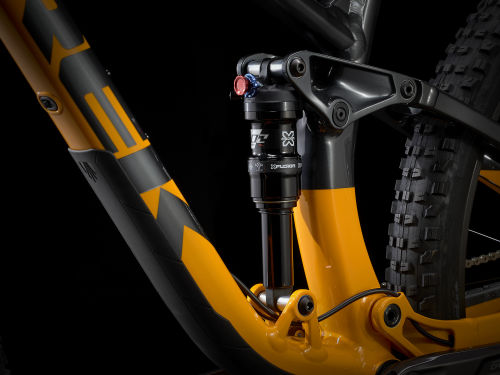

Shoc | Size: XS , S X-Fusion Pro 2, 2-position damper, 210x52.5 mm - Size: S , M , ML , L , XL , XXL X-Fusion Pro 2, 2-position damper, 210x55 mm |
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
Wheels
Hub | Front: Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle |
---|---|
Rims | Alex MD35, Tubeless Ready, 32-hole, 35 mm width, Presta valve |
Spokes | 14 g stainless steel |

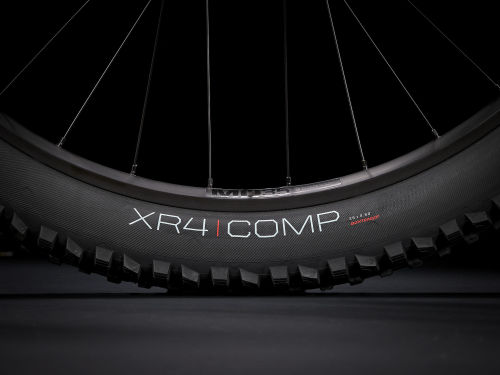

Tyres | Size: XS , S Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.60" - Size: S , M , ML , L , XL , XXL Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60" |
Brakes
Brakes | Shimano hydraulic disc, MT201 lever, MT200 calliper |
---|
Components
Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
---|---|
Grips | Bontrager XR Trail Comp, nylon lock-on |

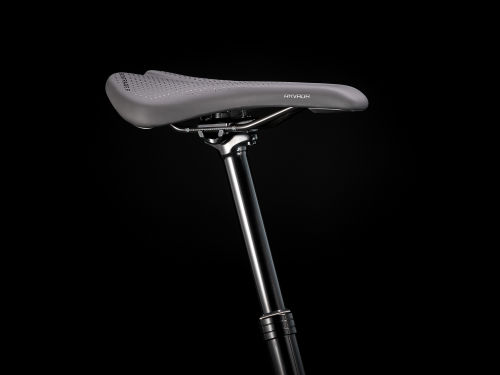

Saddle | Bontrager Arvada, steel rails, 138 mm width |
Seatpost | Size: XS , S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length - Size: M , ML , L , XL , XXL TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |

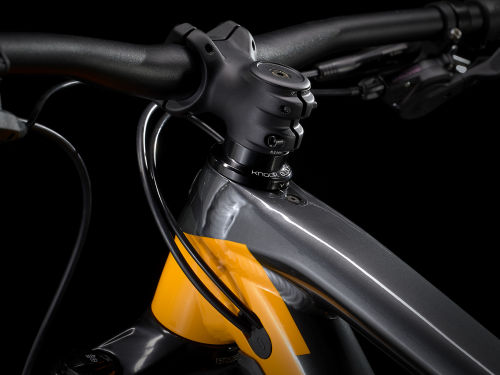

Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
