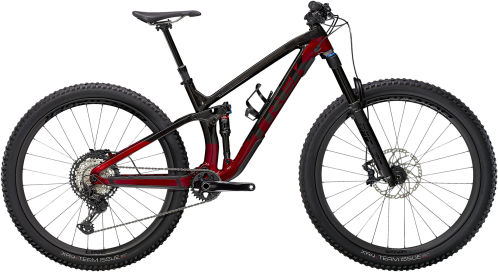

Trek Fuel EX 9.8 XT
Serie: Fuel EX - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | Shimano XT M8100, 12-speed |
|---|---|

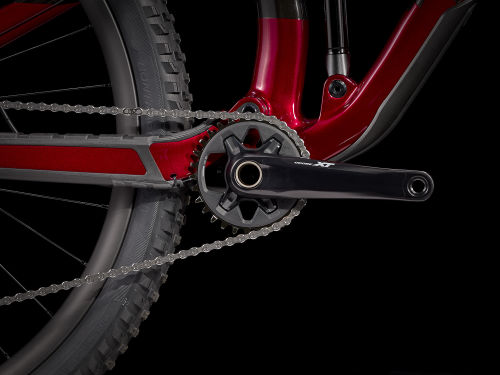

| Crank | Size: XS , S Shimano XT M8100, 30T alloy ring, Boost (52 mm chain line), 170 mm length - Size: M , ML , L , XL Shimano XT M8100, 30T alloy ring, Boost (52 mm chain line), 175 mm length |

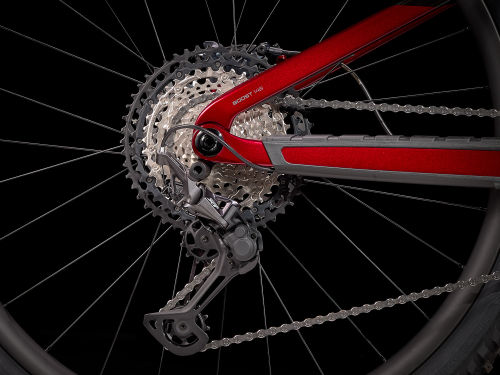

| Derailleurs | Rear: Shimano XT M8100, long cage, 51T max cog |
| Shifters | Shimano XT M8100, 12-speed |
| Cassette | Shimano XT M8100, 10-51, 12-speed |
Frameset
| Fork | Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel |
|---|---|

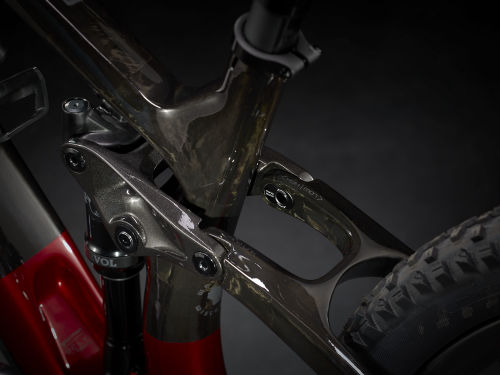

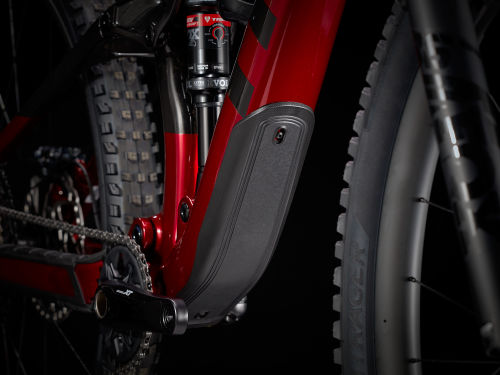

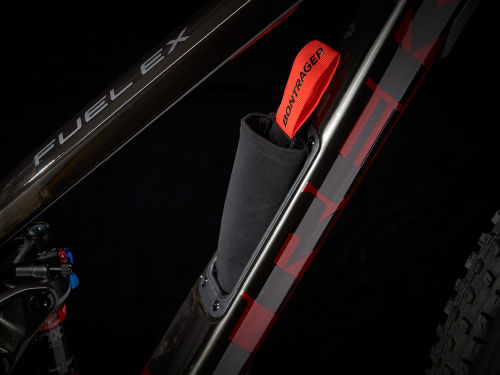

| Frame | OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |

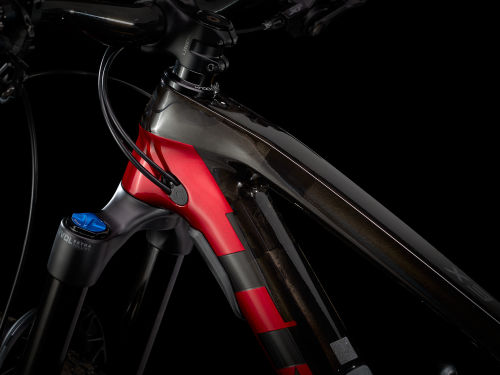

| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |

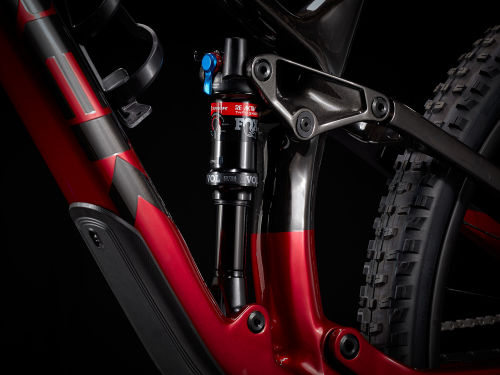

| Shoc | Size: XS , S Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210x52.5mm - Size: S , M , ML , L , XL Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210x55 mm |
| Size: XS , S Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length - Size: M , ML , L , XL Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle - Rear: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
|---|---|

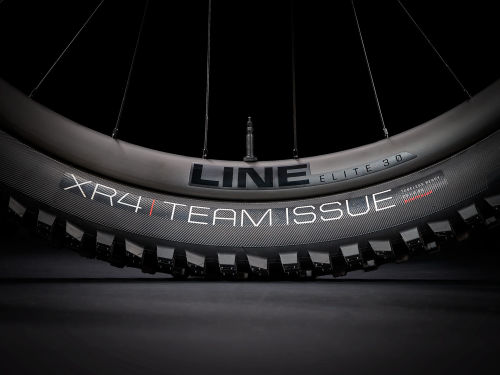

| Tyres | Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.40" - Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60" - Size: S , M , ML , L , XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" - Size: S , M , ML , L , XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60" |
Brakes

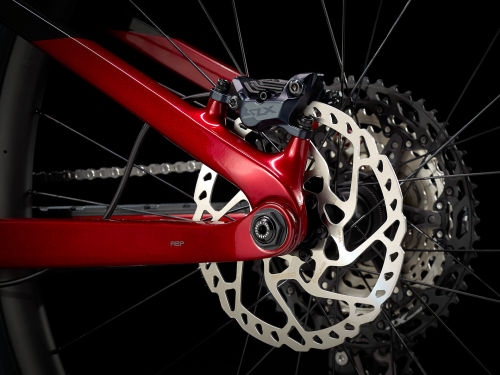

| Brakes | Shimano SLX M7120 4-piston hydraulic disc |
|---|
Components
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
|---|---|
| Grips | Bontrager XR Trail Elite, alloy lock-on |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Size: XS , S Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length - Size: M , ML Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length - Size: L , XL Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6 mm, 480mm length |

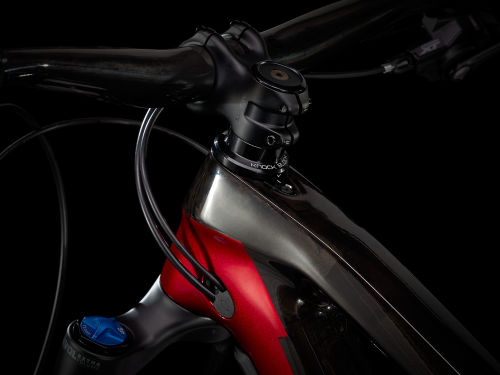

| Stem | Size: XS , S Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length - Size: M , ML , L , XL Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length |
