Specifications
Drivetrain
Chain | SRAM GX Eagle, 12-speed |
---|---|

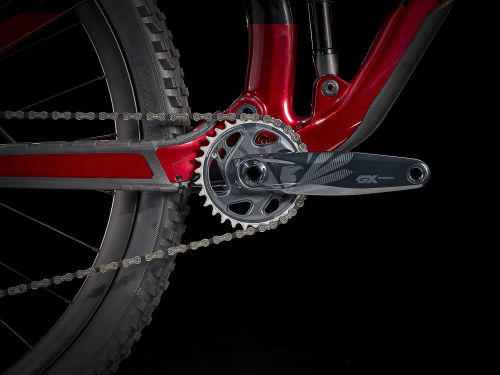

Crank | Size: XS , S SRAM GX Eagle, DUB, 30T alloy ring, Boost, 170 mm length - Size: S , M , ML , L , XL SRAM GX Eagle, DUB, 30T alloy ring, Boost, 175 mm length |
Derailleurs | Rear: SRAM GX Eagle |
Shifters | SRAM GX Eagle, 12-speed |
Cassette | SRAM Eagle XG-1275, 10-52, 12-speed |
Frameset
Fork | Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel |
---|---|

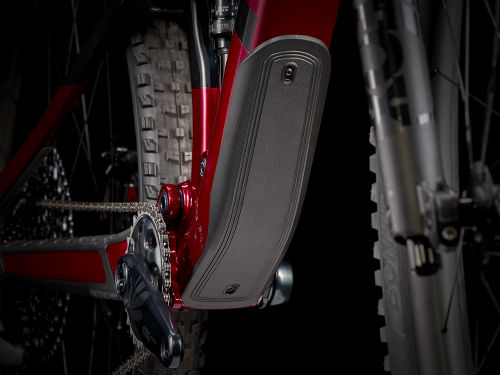

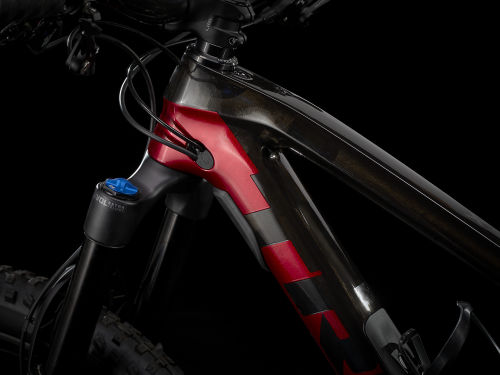

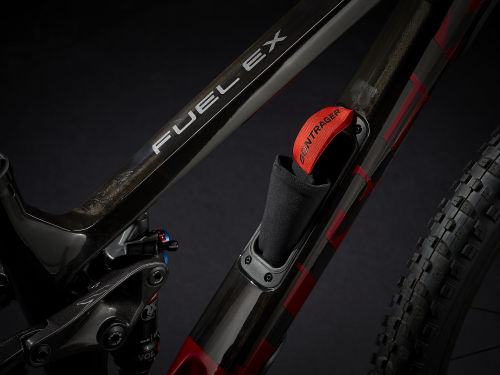

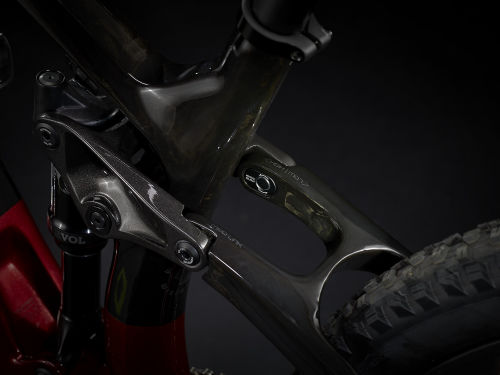

Frame | OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |

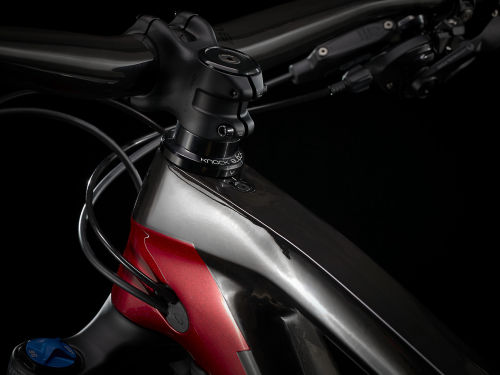

Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |

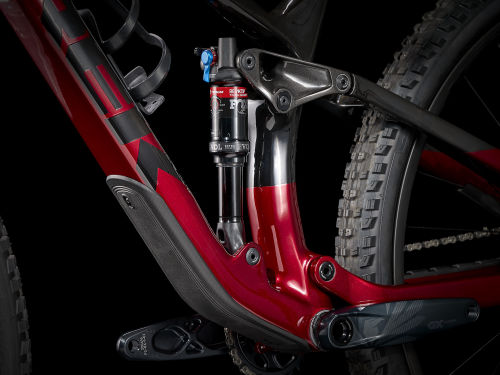

Shoc | Size: XS , S Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210x52.5mm - Size: S , M , ML , L , XL Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210x55 mm |
Size: XS , S Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length - Size: M , ML , L , XL Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length |
Wheels
Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle - Rear: Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle |
---|---|

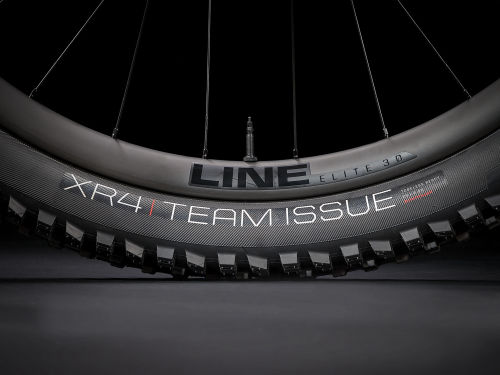

Tyres | Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.40" - Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60" - Size: S , M , ML , L , XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" - Size: S , M , ML , L , XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60" |
Brakes

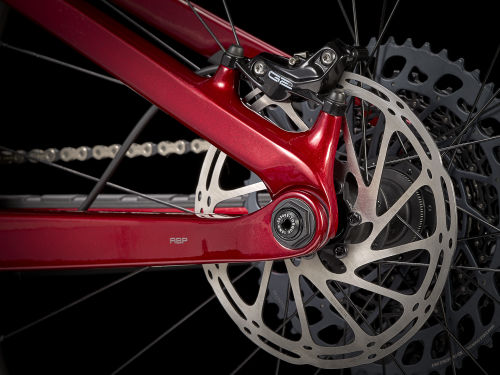

Brakes | SRAM G2 RS hydraulic disc |
---|
Components
Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
---|---|
Grips | Bontrager XR Trail Elite, alloy lock-on |
Saddle | Bontrager Arvada, austenite rails, 138 mm width |
Seatpost | Size: XS , S Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length - Size: M , ML Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length - Size: L , XL Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6 mm, 480mm length |
Stem | Size: XS , S Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length - Size: M , ML , L , XL Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length |
