Specifications
Drivetrain
Crank | Size: XS , S SRAM NX Eagle, DUB, 30T steel ring, Boost (52mm chainline), 170mm length - Size: M , ML , L , XL , XXL SRAM NX Eagle, DUB, 30T steel ring, Boost, 175 mm length |
---|---|

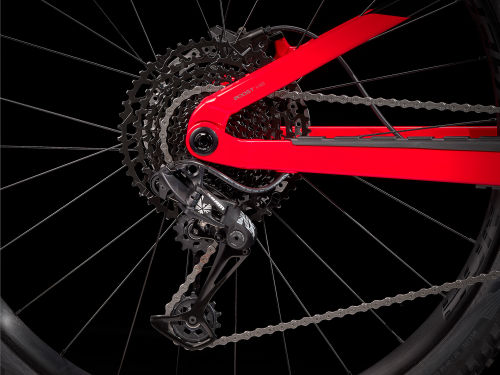

Derailleurs | Rear: SRAM NX Eagle |
Shifters | SRAM NX Eagle, 12-speed |
Cassette | SRAM PG-1230 Eagle, 11-50, 12-speed |
Frameset
Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 140 mm travel |
---|---|

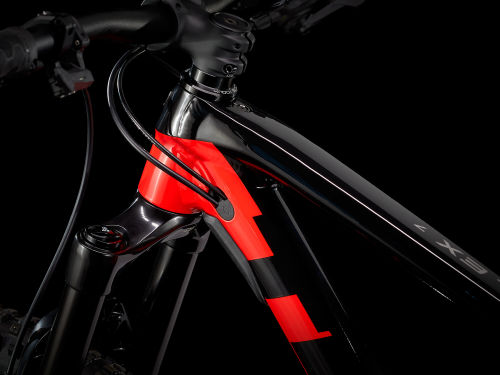

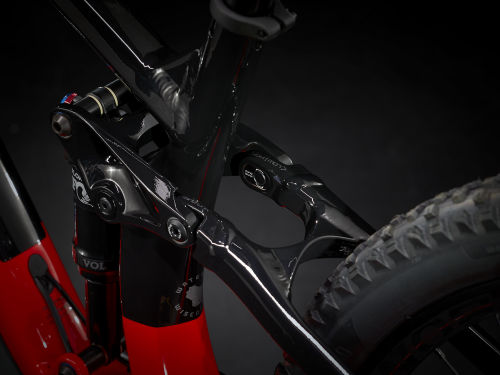

Frame | Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |

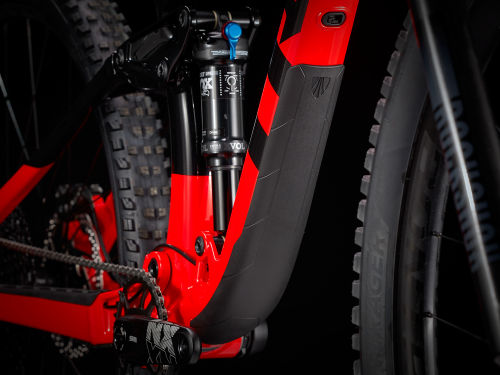

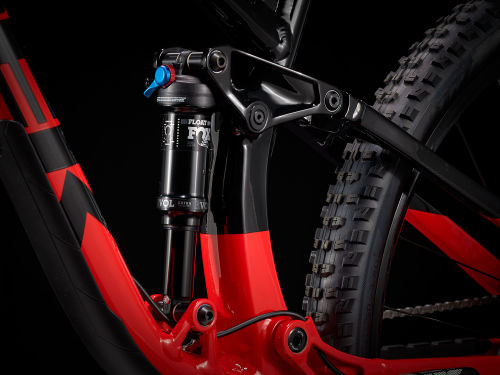

Shoc | Size: XS , S Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 210x52.5mm - Size: S , M , ML , L , XL , XXL Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 210x55 mm |
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
Wheels
Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
---|---|
Spokes | DT Swiss Champion, J-Bend, Black |

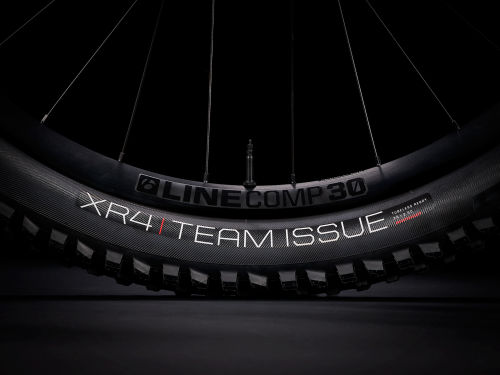

Tyres | Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.40" - Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60" - Size: S , M , ML , L , XL , XXL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" - Size: S , M , ML , L , XL , XXL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60" |
Brakes
Brakes | Size: XS , S , M , ML , L , XL , XXL Shimano hydraulic disc, MT4100 lever, MT410 calliper - Size: XS , S , M , ML , L , XL , XXL Shimano hydraulic disc, MT4100 lever, MT410 caliper |
---|
Components
Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
---|---|
Grips | Bontrager XR Trail Comp, nylon lock-on |

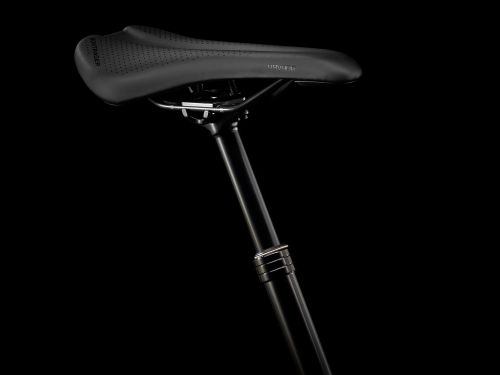

Saddle | Bontrager Arvada, steel rails, 138 mm width |
Seatpost | Size: XS , S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length - Size: M , ML , L , XL , XXL TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 445 mm length |
Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
