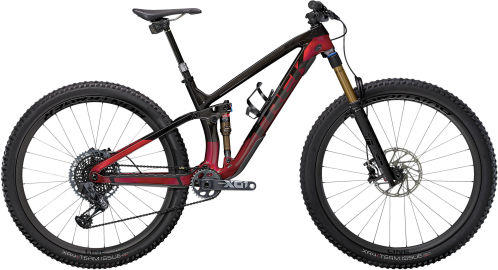

Trek Fuel EX 9.9 X01 AXS
Serie: Fuel EX - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | SRAM XX1 Eagle, 12-speed |
|---|---|

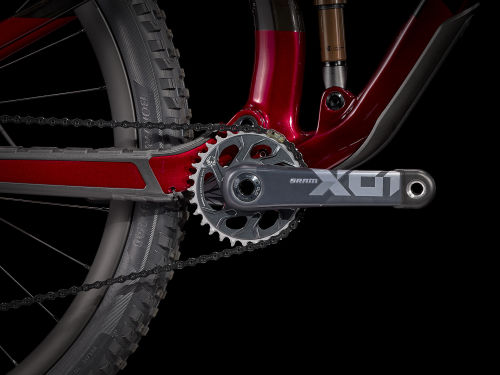

| Crank | Size: XS , S SRAM X01 Eagle carbon, DUB, 30T alloy ring, Boost, 170 mm length - Size: M , ML , L , XL SRAM X01 Eagle carbon, DUB, 30T alloy ring, Boost, 175 mm length |

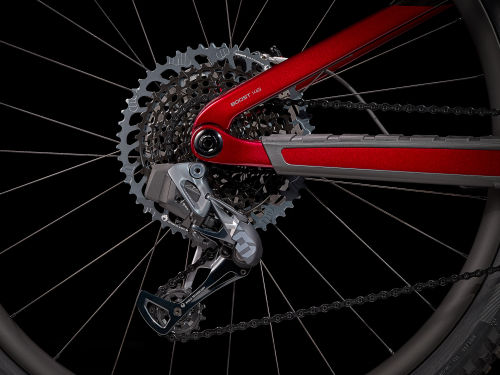

| Derailleurs | Rear: SRAM X01 Eagle AXS |
| Shifters | SRAM Eagle AXS, wireless, 12-speed |
| Cassette | SRAM XG-1295 Eagle, 10-52, 12-speed |
Frameset
| Fork | Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel |
|---|---|

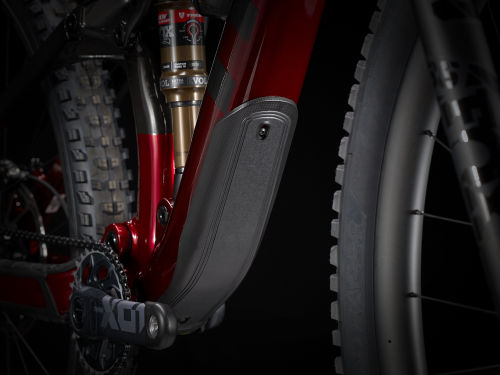

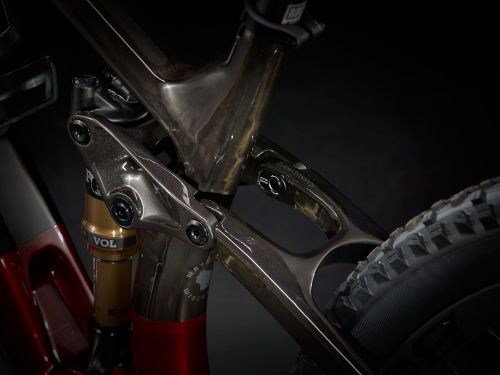

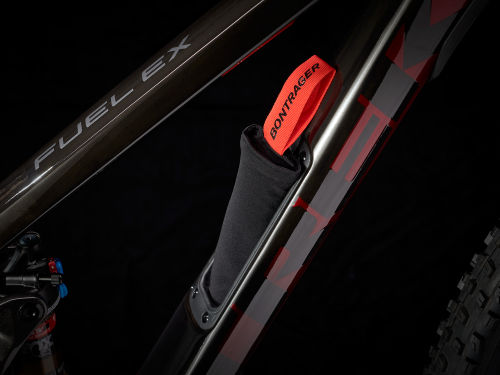

| Frame | OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |

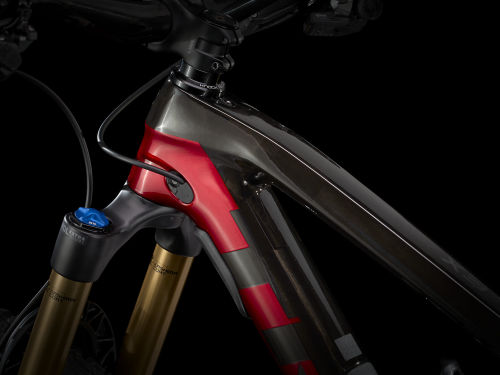

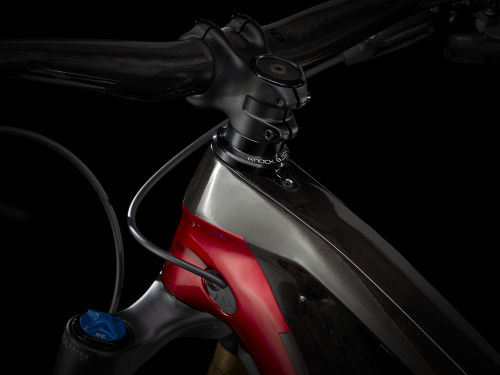

| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |

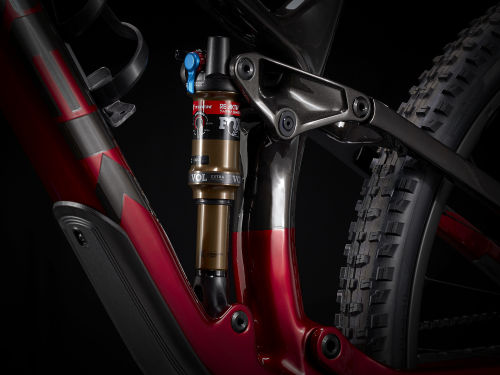

| Shoc | Size: XS , S Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x52.5mm - Size: S , M , ML , L , XL Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x55 mm |
| Size: XS , S Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length - Size: M , ML , L , XL Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length |
Wheels

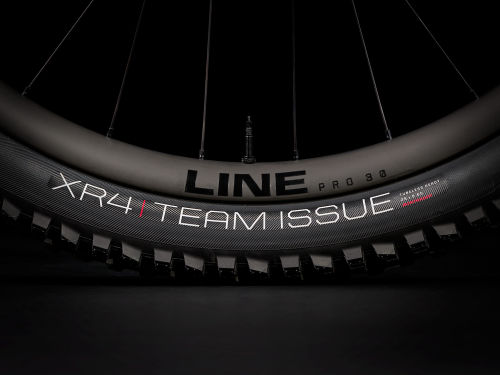

| Tyres | Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.40" - Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60" - Size: S , M , ML , L , XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" - Size: S , M , ML , L , XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60" |
|---|
Brakes

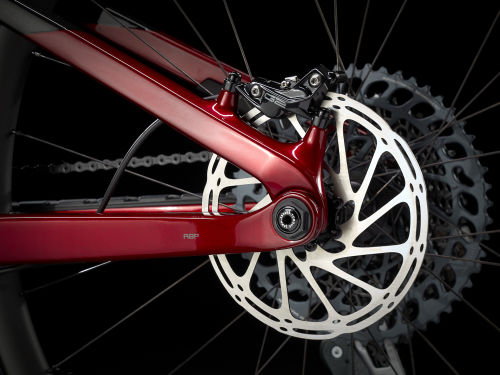

| Brakes | SRAM G2 Ultimate hydraulic disc, carbon levers |
|---|
Components
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
|---|---|
| Grips | Bontrager XR Trail Elite, alloy lock-on |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Size: XS , S RockShox Reverb AXS, 100 mm travel, wireless, 31.6 mm, 340 mm length - Size: M , ML RockShox Reverb AXS, 150mm travel, wireless, 31.6 mm, 440 mm length - Size: L , XL RockShox Reverb AXS, 170mm travel, wireless, 31.6 mm, 480 mm length |
| Stem | Size: XS , S Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length - Size: M , ML , L , XL Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length |
